Forlængersæt til hækpropeller type STERN150

2.470,00 DKK
Forlænget leveringstid
Varenr
SDKIT150
Køb nu og modtag den mellem 19.06.24 og 26.06.24
Leveringsdatointervallet giver dig en indikation af, hvor lang tid det vil tage at modtage varen. Det er baseret på ordrehåndteringstid, leveringsmetode og produkttilgængelighed.
For the stern thruster to function correctly, it is important that the propeller is submerged well below the waterline. If this is not the case, the propeller may suck air into the tunnel, with a considerable loss of thrust power as aconsequence.

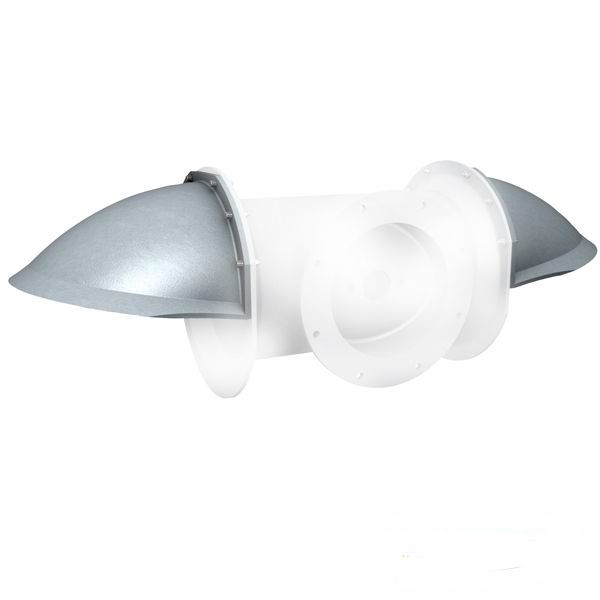

However, on some boats this is not really feasible, because the draft at the stern is too shallow and because the thruster assembly should never protrude beneath the bottom of the boat. In order to ensure both tunnel openings are sufficiently belowthe waterline, VETUS has developed an extension kit for stern thrusters. This kit consists of two shells made of GRP, together with all the necessary stainless steel fastenings.
The kit can be easily retrofitted to existing installations. It should be used if the transom is fitted with other equipment, which may prevent unhindered water flow through the tunnel. It is also ideal for so-called “house boats”, which in generalhave a very shallow draft both at the bow and at the stern.
Mere information
Fabrikant Vetus
Tunnel dia. (mm) 150
Size A in mm, see drawing 27
Size B in mm, see drawing 195
Size C in mm, see drawing 650
Size E in mm, see drawing 232
Size F, diameter in mm, see drawing 150
Size D in mm, see drawing 220
Size X (= 1/2 F + A) in mm, see drawing 102
