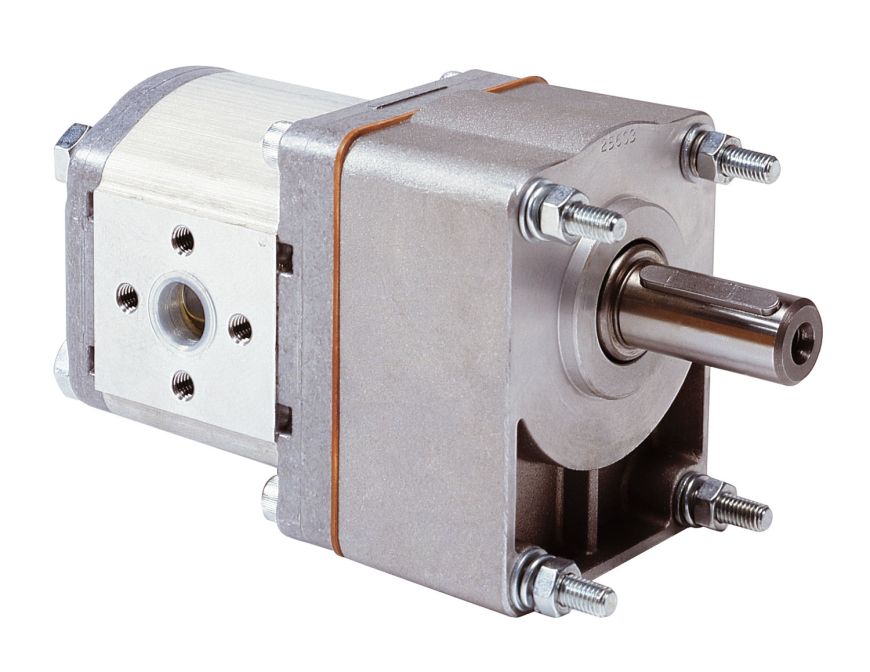

Gear pump 11, 3cc with front bearing
Ikke på lager – ring for leveringsinformation
Leveringsdatointervallet giver dig en indikation af, hvor lang tid det vil tage at modtage varen. Det er baseret på ordrehåndteringstid, leveringsmetode og produkttilgængelighed.
Fixed stroke volume of 11.3 cc/revolution. For mounting with pulley and toothed V-belt on motor.
Aluminium hydraulic gear pump with front bearing. 22-mm diameter drive shaft with 6-mm key. In terms of dimensions, similar to a dynamo. Highly suitable for VETUS hydraulic systems with a single function. HT1028, HT1028B and HT1028S (see hydraulic tanks).
| Fabrikant | Vetus |
|---|---|
| Max. speed (RPM) | 3500 |
| Power (hp) | 1,5 |
| Aksel Diameter (tommer) | 7/8 " (22.23mm) |
| Power (kW) | 1 |
| Weight (kg) | 5 |
| Shaft diameter in (mm) | 22 |
| Dimensions (length x width x height) (mm) | 220 x 90 x 112 |
