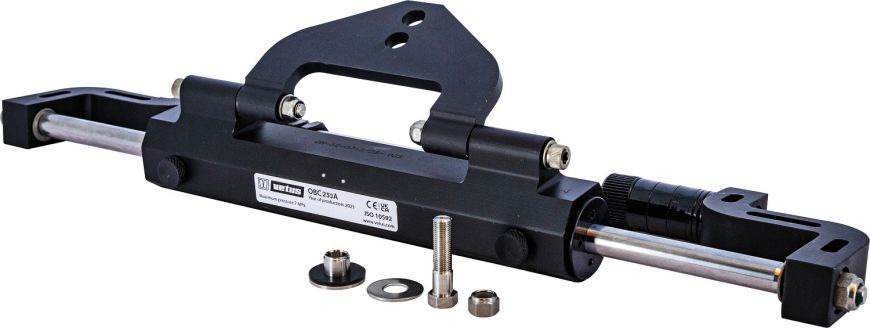

Cylinder type OBC250A for outboard steering system
Køb nu og modtag den mellem 11.04.25 og 13.04.25
Leveringsdatointervallet giver dig en indikation af, hvor lang tid det vil tage at modtage varen. Det er baseret på ordrehåndteringstid, leveringsmetode og produkttilgængelighed.
Hydraulic steering cylinder for outboard engines / z-drives up to 250 hp. Developed with marine-grade AISI 316L stainless-steel and aluminum components to bring ease and comfort while steering your boat.
Features:
Specifications:
- Aluminum and AISI 316L stainless-steel components ensure superior corrosion and wear resistance
- Robust sealing system prevents the intrusion of seawater and dirt
- Balanced cylinder: same number of turns port to starboard offers a steady steering response
- Suitable for single and twin engines
- Supplied with combined Ø 10 mm hose connections and bleed nipples
Specifications:
- Stroke: 203 mm (8”)
- Displacement: 122 cc, 7.4 ci
- Weight (kg): 3,7
- Weight (lbs): 8,15
- Workload: 422 kgf
- Connections: 3,7 kg
- Maximum pressure: 70 bar (1015 PSI)
- Connection: T-fitting 10 mm (3/8”) with air vent (HS868)
| Fabrikant | Vetus |
|---|
